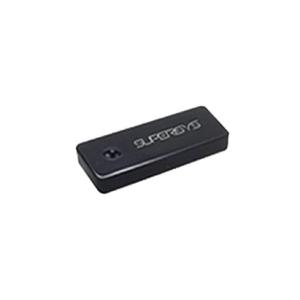

RF-UZMTC2309M-R6,High Performance Metal Resistant RFID Carrier
This series of carriers is primarily used for RFID identification of pallets/load carriers/containers. Its operating frequency is 902-928MHz and supports the ISO18000-6C protocol. The carrier is equipped with a high-performance built-in antenna. Both its design and production processes have undergone strict testing. Advanced manufacturing techniques have been adopted during its production, giving it features such as anti-metal interference, accurate read/write distance, high sensitivity, and consistent performance
● Stable quality, long information storage life
● IP67 protection grade, can adapt to oil, dust, humidity, high temperature and other harsh environment
● Metal resistant design, can still be reliably identified in a metal environment
● Fixed with screws and back glue, the installation is very reliable
● High sensitivity, long read and write distance, stable performance
● Independent research and development, can be customized a variety of dimensions
| product mode | RF-UZMTC6923M-U8 | RF-UZMTC8724M-U8 | RF-UZMT10330M-U8 | RF-UZMTC12922M-H3 | RF-UZMTC6604M-H3 | RF-UZMTC6015M-H3 | RF-UZMTC8015M-H3 | RF-UZMTC1305M-R6 | RF-UZMTC2309M-R6 |
| Product images |  |
|
|
|
|
|
|
|
|
| Air Protocol Protocol | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 | ISO 18000-6C Class 1 Gen 2 |
| Operating frequency | 902~928 MHz | 840~940 MHz | 902~928 MHz | 902~928 MHz | 902~928 MHz | 902~928 MHz | 902~928 MHz | 902~928 MHz | 920~925 MHz |
| EPC memory size | 128 bits | 128 bits | 128 bits | 96 bits | 96 bits | 96 bits | 96 bits | 96 bits | 96 bits |
| USER memory size | 0 bits | 0 bits | 0 bits | 512 bits | 512 bits | 512 bits | 512 bits | 32 bits | 512 bits |
| Size(mm) | 69*23*7mm | 87*24*11mm | 103*30*7.5mm | 129*22.4*10mm | 66*4*3mm | 60*15*3mm | 80*15*3mm | 13*4.5*2mm | 23*9*3mm |
| Housing material | PC+ABS | PC | PC+ABS | PC | FR4 | FR4 | FR4 | ceramics | ceramics |
| Installation method | Screw fixing (M5*2 mounting hole) | Screw fixing (M5*2 mounting hole) | Screw fixing (M5*2 mounting hole) | Screw fixing (M3*2 mounting hole) | 3M adhesive backing | 3M adhesive backing | 3M adhesive backing | 3M adhesive backing | 3M adhesive backing |
| IP rating | IP67 | IP67 | IP67 | IP66 | IP65 | IP65 | IP65 | IP65 | IP65 |
| weight | 11g | 19g | 26g | 18g | 1.5g | 6g | 8g | 1.5g | 3.5g |
| Operating temperature | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ |
| Storage temperature | -40℃~80℃ | -40℃~80℃ | -40℃~80℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ |
| Metal resistance | Anti-metal | Anti-metal | Anti-metal | Anti-metal | Anti-metal | Anti-metal | Anti-metal | Anti-metal | Anti-metal |
