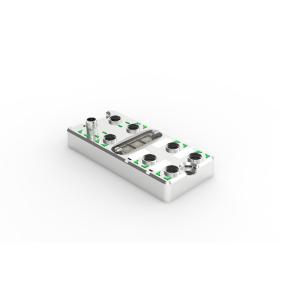

IACM-P4-PN/ECT/EIP/EN,High Speed Industrial Bus Module
The IACM-PX series bus module is an RFID controller that offers standard industrial bus protocols, supporting ProfiNet, EtherCAT, EtherNet/IP, and MODBUS TCP protocols. It includes two M12 T-CODE power supply interfaces, two M12 D-CODE 4-PIN bus interfaces, and either 2 or 4 M12 A-CODE RFID reader and writer interfaces. The housing is made of a sturdy zinc alloy material, featuring wide connection range, strong communication capability, good environmental adaptability, and a high level of protection
The IACM-PX series bus module can be used in conjunction with RFID in the manufacturing process of the 3C and new energy industries. After identifying the carrier through RFID, it transmits the information to the controller, achieving workpiece identification, recording of inspection results, automatic work reporting, mixed-flow production, etc., greatly improving production efficiency and product quality.
| Product model | IACM-P4-PN | IACM-P4-ECT | IACM-P4-EIP | IACM-P4-EN | IACM-P2-PN | IACM-P2-ECT | IACM-P2-EIP | IACM-P2-EN | |
 | | ||||||||
| Physical parameters | Product size | 140.0 * 63.0 * 31.4mm | |||||||
| Housing material | Zinc alloy | ||||||||
| power supply | Rated voltage | 18~30VDC | |||||||
| Rated current | Imax<=0.3A@24V(Bus module own current) | ||||||||
| Power supply mode | Independent dual power supply (system power UB, load power UL) | ||||||||
| Power connector | T-CODE male/female 4 pins | ||||||||
| Power protection | With reverse polarity protection, 3000W surge protection | ||||||||
| communication | Communication protocol | ProfiNet | EtherCAT | Ethernet/IP | MODBUS TCP | ProfiNet | EtherCAT | EtherNet/IP | MODBUS TCP |
| Network interface | Both network ports have integrated switch functions and comply with IEE802.3 standards | Single network port | Both network ports have integrated switch functions and comply with IEE802.3 standards | Single network port | |||||
| Communication interface | D-CODE M12 female, 4-pin | D-CODE M12 female, | D-CODE M12 female, 4-pin | D-CODE M12 female, | |||||
| 4-pin (ETH1) | 4-pin (ETH1) | ||||||||
| Communication cable length | Max=100m | ||||||||
| System topology | Star structure, tree structure | Star structure | Star structure, tree structure | Star structure | |||||
| RFID port | Number of RFIDs | 4 independent channels | 2 independent channels | ||||||
| RFID interface | A-CODE M12 female, 5-pin | ||||||||
| Load capacity | VOUT=24V±20%,LOUT<=0.7A | ||||||||
| Circuit protection | Power supply anti-reverse polarity, overvoltage and overcurrent protection | ||||||||
| Troubleshooting | Supports troubleshooting | ||||||||
| Environmental adaptability | Operating temperature | -25°C~+70°C | |||||||
| Storage temperature | -40°C~+85°C | ||||||||
| Degree of protection | IP67 | ||||||||
| Product certification | CE/RoHS 2.0 | ||||||||
