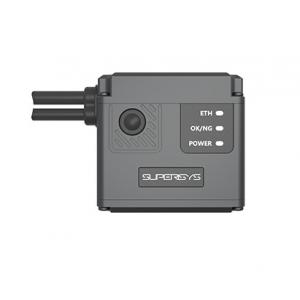

CR-HC601, Fixed Mount Scanner Barcode Reader Small With Aim Aiming Point FCC

Name: CRHC601 Fixed Mount Scanner Barcode Reader Small With Aim Aiming Point FCC
Brand: SUPERISYS
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :SUPERISYS

Model Number :CR-HC601

Certification :ISO\FCC\ROSH

Place of Origin :CHINA

MOQ :one

Price :Large quantity price negotiable

Payment Terms :T/T, Western Union

Supply Ability :1000 per day

Delivery Time :5-8 Work Days

Stock :In Stock

Description :Fixed code reader，

size :48(width)x45(height)x20(depth)

weight :223g

power supply mode :5-30V DC +/-10%500mA

power loss :peak <2.5W, average 2W

functional module :Dome illumination

system architecture :ARM926

Image data format :JPEG

Sensor type :Global Shutter CMOS

software :Fixed reading 1D/QR codes, reading challenging 1D/QR codes, including DPM

focal length :30mm/70mm/100m m/150mm

resolution ratio :WVGA 1280*800

frame rate :60 fps

Image color :mono

secondary light source :4 high brightness LED

interface type :RS232, USB-virtual-COM, USB-keyboard， Ethernet

Motion tolerance :1 m/s

Recognition accuracy :min. 2mil

Read code system :1D code: Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC,EAN etc.2D code: PDF 417, MicroPDF417, DataMatrix, Maxicode, QR codeMicroQR, Aztec, Hanxin，etc.

temperature :Operating:-30°C to 60C, Storage: -40C to 70C

humidity :0% to 90% relative humity no-condenssing

IPclass :IP54

Contact Now

Add to Cart

View Product Description

CR-HC601,With Aim Aiming Point, Easy To Locate The Bar Code,Fixed-Mount Barcode Scanner

Product features

■ Full code system compatible

■ Compatible with DPM codes

■ Minimum 2m small bar code can be read

■ Support automatic adjustment

■ Comes with cable, RJ45 interface

■ Multiple sets of parameters, better cope with mixed line production

■ Supports a variety of communication methods

■ Support Modbus,PN and other communication protocols

■ Double-sided installation holes, arbitrary installation

■ With Aim aiming point, easy to locate the bar code

■ OK/NG indicator light, visually determine whether to read

■ IP54 protection grade

■ Can withstand the impact of 1.5M falling to the cement floor (deflection 5* allowed)

model	CR-HC601S-05R03	CR-HC601S-05R07	CR-HC601S-05R10	CR-HC601S-05R15
size	50(width)x47(height)x25(depth)
weight	223g
power supply mode	5-30V DC +/-10%500mA
power loss	peak <2.5W, average 2W
functional module	Dome illumination
system architecture	ARM926
Image data format	JPEG
Sensor type	Global Shutter CMOS
software	Fixed reading 1D/QR codes, reading challenging 1D/QR codes, including DPM
focal length	30mm	70mm	100m m	150mm
resolution ratio	WVGA 1280*800
frame rate	60 fps
Image color	mono
secondary light source	4 high brightness LED
interface type	RS232, USB-virtual-COM, USB-keyboard, Ethernet
Motion tolerance	1 m/s
Recognition accuracy	min. 2mil
Read code system	1D code: Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC,EAN etc.2D code: PDF 417, MicroPDF417, DataMatrix, Maxicode, QR codeMicroQR, Aztec, Hanxin,etc.
temperature	Operating:-30°C to 60C, Storage: -40C to 70C
humidity	0% to 90% relative humity no-condenssing
IPclass	IP54
