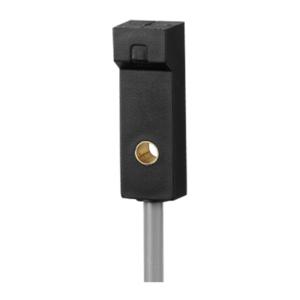

SR-SL-QF08,Dc Inductive Approach Light
Product characteristics
Operating voltage: 10-30VDC
Output function: NPN/PNP, NO/NC Optional
With polarity, overload, short circuit protection
Protection level: IP67
Direct outlet type, connector type
Operating temperature -25°C-+70%C
The use of optimized traditional technology and advanced packaging technology to ensure long-term stability in harsh environments
| model | SR-SL-QF08 | SR-SL-QL08 | ||
| external diameter | Q8 | |||
| ● flush ○ unshielded | ○ | |||
| Sensing distance sn: mm | 2.5mm | |||
| canning material | polycarbonate | |||
| ●tape light ○No indicator | ● | |||
| picture |  | |||
| working voltage | 10-30VDC | |||
| Allowable ripple voltage | ＜10% | |||
| no-load current | ＜10mA | |||
| Maximum load current | 100mA | |||
| leak current | ＜0.01mA | |||
| pressure drop | ＜1 .5V | |||
| switching frequency | 500Hz | |||
| response time | 0.5ms/0.5ms | |||
| Switching hysteresis | ＜15%(Sr) | |||
| repeated accuracy | ＜0.04mm | |||
| level of protection | IP67 | |||
| operating temperature | -25℃~+70℃ | |||
| temperature drift | ＜10%(Sr) | |||
| short-circuit protection | YES | |||
| overcurrent | 120mA | |||
| Inductive surface material | polycarbonate | |||
| Size drawing (unit: mm) | | | ||
| Cable 2m | 2.8φ3x0.15 PUR | 2.8φ3x0.15 PUR | ||
| Weight (approximate) | 12g | 12g | ||
