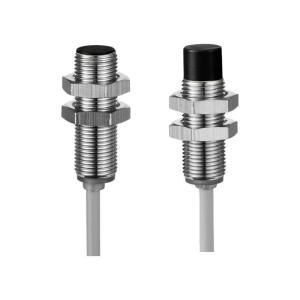

SR-SL-C12,Dc Inductive Approach Light,
Operating voltage: 10-30VDC
Output function: NPN/PNP, NO/NC Optional
With polarity, overload, short circuit protection
Protection level: IP67
Direct outlet type, connector type
Operating temperature -25°C-+70%C
The use of optimized traditional technology and advanced packaging technology to ensure long-term stability in harsh environments
| model | SR-SL-C12 | SR-SL-C12-***-E4 | SR-SL2-C12 | SR-SL2-C12-***-E4 | ||||
| external diameter | M12 | M12 | M12 | M12 | ||||
| ● flush ○ unshielded | ● | ○ | ● | ○ | ● | ○ | ● | ○ |
| Sensing distance sn: mm | 2mm | 4mm | 2mm | 4mm | 4mm | 8mm | 4mm | 8mm |
| canning material | Stainless steel or nickel-plated copper | Stainless steel or nickel-plated copper | Stainless steel or nickel-plated copper | Stainless steel or nickel-plated copper | ||||
| ●tape light ○No indicator light | ● | ● | ● | ● | ● | |||
| picture |  | | | | ||||
| working voltage | 10-30VDC / 5-36VDC / 10-55VDC / 10-60VDC | |||||||
| Allowable ripple voltage | ＜10% | |||||||
| no-load current | ＜10mA | |||||||
| Maximum load current | 200mA | |||||||
| leak current | ＜0.01mA | |||||||
| pressure drop | ＜1 .5V | ＜2.0V | ||||||
| switching frequency | 2KHz | 1KHz | 2KHz | 1KHz | 1KHz | 500Hz | 1KHz | 500Hz |
| response time | 0.1ms/0.1ms | 0.2ms/0.2ms | 0.1ms/0.1ms | 0.2ms/0.2ms | 0.2ms/0.2ms | 0.5ms/0.5ms | 0.2ms/0.2ms | 0.5ms/0.5ms |
| Switching hysteresis | ＜15%(Sr) | |||||||
| repeated accuracy | ＜1.0%(Sr) | |||||||
| level of protection | IP67 | |||||||
| operating temperature | -25℃~+70℃ | |||||||
| temperature drift | ＜10%(Sr) | |||||||
| short-circuit protection | YES | |||||||
| overcurrent | 220mA | |||||||
| Inductive surface material | POM | PBT | POM | PBT | POM | PBT | POM | PBT |
| Size drawing (unit: mm) | | | | | ||||
| Cable 2m | 3.8φ3x0.15or3.8φ4x0.15 | 3.8φ3x0.15or3.8φ4x0.15 | ||||||
| Weight (approximate) | 67g | 65g | 31g | 30g | 67g | 65g | 31g | 30g |
