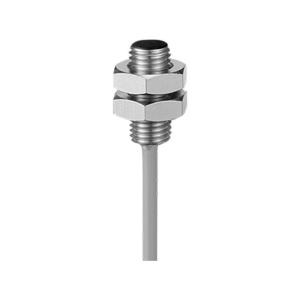

SR-SL-C08,Dc Inductive Approach Light,
Product characteristics
Operating voltage: 10-30VDC
Output function: NPN/PNP, NO/NC Optional
With polarity, overload, short circuit protection
Protection level: IP67
Direct outlet type, connector type
Operating temperature -25°C-+70%C
The use of optimized traditional technology and advanced packaging technology to ensure long-term stability in harsh environments
| model | SR-SL-CR08 | SR-SL-C08 | SR-SL-C08-***-P3 | SR-SL2-C08 | SR-SL2-C08-***-P3 | ||||
| external diameter | M8 | M8 | M8 | M8 | M8 | ||||
| ● flush ○unshielded | ● | ● | ○ | ● | ○ | ● | ○ | ● | ○ |
| Sensing distance sn: mm | 1.5mm | 1.5mm | 2mm | 1.5mm | 2mm | 2mm | 4mm | 2mm | 4mm |
| canning material | Stainless steel or nickel-plated copper | Stainless steel or nickel-plated copper | stainless steel | Stainless steel or nickel-plated copper | stainless steel | ||||
| ●tape light ○No indicator light | ● | ● | ● | ● | ● | ||||
| picture |  | | | | | ||||
| technical specification | |||||||||
| working voltage | 10-30VDC | 10-30VDC/5-36VDC/10-55VDC/10-60VDC | 10-30VDC | ||||||
| Allowable ripple voltage | ＜10% | ||||||||
| no-load current | ＜10mA | ||||||||
| Maximum load current | 200mA | ||||||||
| leak current | ＜0.01mA | ||||||||
| pressure drop | ＜1.5V | ||||||||
| switching frequency | 2KHz | 2KHz | 1KHz | 2KHz | 1KHz | ||||
| response time | 0.1ms/0.1ms | 0.1ms/0.1ms | 0.2ms/0.2ms | 0.1ms/0.1ms | 0.2ms/0.2ms | ||||
| Switching hysteresis | ＜15%(Sr) | ||||||||
| repeatability | ＜1.0%(Sr) | ||||||||
| level of protection | IP67 | ||||||||
| operating temperature | -25℃~+70℃ | ||||||||
| temperature drift | ＜10%(Sr) | ||||||||
| short-circuit protection | YES | ||||||||
| overcurrent | 220mA | ||||||||
| Inductive surface material | POM | ||||||||
| Size drawing (unit: mm) | | | | | | ||||
| Cable 2m | 2.8φ3x0.15 | 2.8φ3x0.15或2.8φ4x0.15 | 2.8φ3x0.15或2.8φ4x0.15 | ||||||
| Weight (approximate) | 35g | 40g | 15g | 40g | 15g | ||||
